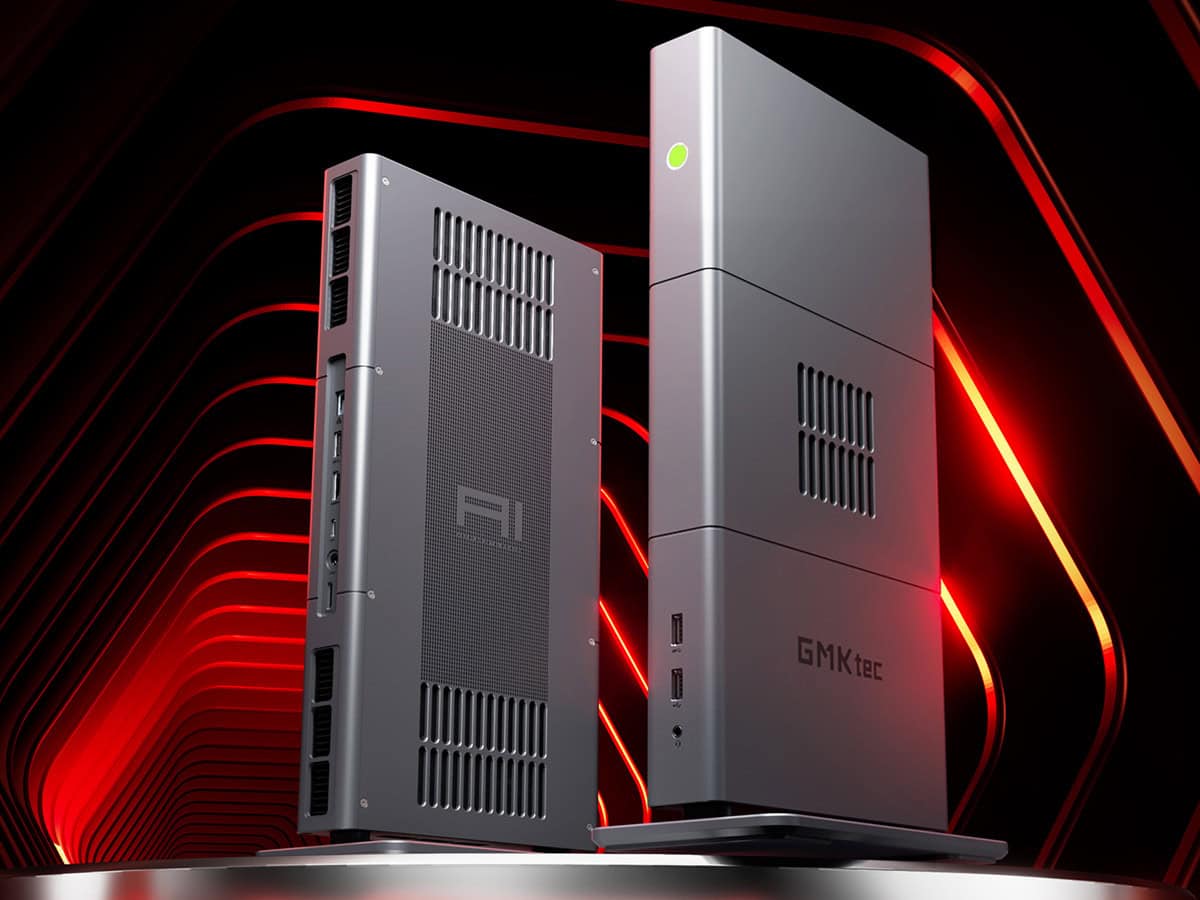

GMKtec EVO-X3 AMD Ryzen AI Max+ 395 AI Mini PC
₨ 839,999
- AMD Ryzen AI Max+ 395 Processor – 16 Cores / 32 Threads
- Zen 5 Architecture with Up to 5.1GHz Boost Clock
- AMD Radeon 8060S RDNA 3.5 Integrated Graphics
- 40 Compute Units with Up to 2900MHz GPU Frequency
- AMD XDNA 2 NPU with Up to 50 TOPS AI Performance
- Up to 126 TOPS Total AI Performance
- 128GB Onboard LPDDR5X Memory at Up to 8000MT/s
- Up to 96GB Maximum VRAM Allocation
- 4TB M.2 2280 PCIe 4.0 ×4 NVMe SSD
- Dual M.2 PCIe 4.0 ×4 Slots with Up to 16TB Storage Expansion
- OCuLink PCIe Gen 4 ×4 for eGPU Expansion
- Wi-Fi 7, Bluetooth 5.4 & 2.5G LAN
- HDMI 2.1 & USB4 with Up to 8K@60Hz Display Support
- Triple Heat Pipes & Triple Cooling Fans
- Windows 11 Pro
Description
GMKtec EVO-X3 AMD Ryzen AI Max+ –Â High-Performance Mini PC for Gaming, AI and Professional Workloads
The GMKtec NucBox EVO X3 is a powerful AI mini PC built for demanding computing, gaming, content creation, software development, productivity, and local AI workloads. It is powered by the AMD Ryzen AI Max+ 395 processor, featuring 16 cores and 32 threads based on the Zen 5 architecture, with boost speeds of up to 5.1GHz.
The GMKtec NucBox EVO X3 combines high-capacity LPDDR5X memory, powerful Radeon 8060S integrated graphics, fast PCIe 4.0 NVMe storage, and advanced AI processing in a compact desktop form factor. With up to 128GB of onboard memory and support for up to 16TB of SSD storage, it is designed for users who need substantial computing resources without a traditional full-size desktop.
Key Features
AMD Ryzen AI Max+ 395 Processor
At the heart of the GMKtec NucBox EVO X3 is the AMD Ryzen AI Max+ 395 processor, built using AMD Zen 5 architecture.
It features 16 CPU cores and 32 threads, with boost speeds of up to 5.1GHz. The processor also includes 16MB of L2 cache and 64MB of L3 cache, providing a strong foundation for demanding multitasking, development, content creation, gaming, and professional applications.
Radeon 8060S RDNA 3.5 Graphics
The integrated AMD Radeon 8060S graphics features 40 Compute Units based on the RDNA 3.5 architecture, with graphics speeds of up to 2900MHz according to the supplied specifications.
The powerful integrated GPU allows the EVO-X3 to handle graphics-intensive workloads while keeping the overall system compact. It can be used for gaming, video editing, creative applications, 3D workloads, and other GPU-accelerated tasks.
Advanced AI Processing
The AMD Ryzen AI Max+ 395 platform combines CPU, GPU, and dedicated NPU capabilities for AI workloads.
The system features an AMD XDNA 2 NPU with up to 50 TOPS NPU performance and up to 126 TOPS total AI performance. This makes the system suitable for compatible AI applications and local AI workloads that can take advantage of accelerated processing.
Up to 128GB LPDDR5X Memory
The EVO-X3 comes with 128GB of onboard LPDDR5X memory running at up to 8000MT/s.
The large memory capacity can be useful for demanding multitasking, professional applications, development environments, content creation, and AI workloads that require substantial system memory.
The supplied specifications also list up to 96GB of maximum VRAM, allowing the integrated Radeon graphics to utilize a substantial portion of the system’s high-capacity memory where supported.
4TB PCIe 4.0 NVMe SSD
The GMKtec NucBox EVO X3 includes a 4TB M.2 2280 PCIe 4.0 ×4 NVMe SSD for fast storage.
It features dual M.2 2280 PCIe 4.0 ×4 slots, providing room for storage expansion up to 16TB, using configurations of up to 8TB ×2.
This makes the mini PC suitable for users who work with large applications, games, media libraries, development projects, and other storage-intensive files.
OCuLink PCIe Gen 4 ×4 eGPU Expansion
For users who need additional graphics performance, the system includes an OCuLink port supporting PCIe Gen 4 ×4.
A compatible external GPU can be connected through OCuLink, providing an upgrade path for users who need more dedicated graphics performance for gaming, 3D rendering, video production, and other GPU-intensive workloads.
Wi-Fi 7 and 2.5G LAN
The EVO-X3 includes modern connectivity options with Wi-Fi 7, Bluetooth 5.4, and a 2.5G RJ45 LAN port.
This provides flexible wired and wireless networking options for high-speed internet connections, local networks, file transfers, peripherals, and other connected devices.
Multiple Display and USB Connections
The GMKtec NucBox EVO X3 offers a range of display and peripheral connections.
It includes:
- HDMI 2.1 with support for up to 8K at 60Hz
- USB4 Type-C with video output
- USB-A 3.2 Gen 2
- USB-A 3.2 Gen 1
- USB-A 2.0
- 3.5mm audio combo jack
- 2.5G RJ45 LAN
- OCuLink PCIe Gen 4 ×4
This selection makes it practical for multi-device desktop setups, external displays, storage devices, gaming peripherals, and other accessories.
Cooling and Compact Desktop Design
The GMKtec NucBox EVO X3 uses a cooling system with triple heat pipes and triple cooling fans to manage heat during demanding workloads.
Despite its high-performance hardware, the mini PC maintains a compact desktop form factor, making it suitable for workstations where desk space is limited.
Windows 11 Pro and Professional Connectivity
The system comes with Windows 11 Pro, providing a familiar operating environment for productivity, development, business applications, gaming, and professional workflows.
With Wi-Fi 7, Bluetooth 5.4, 2.5G Ethernet, USB4, HDMI 2.1, and OCuLink, the EVO-X3 can serve as the central computer for a wide range of desktop setups.
GMKtec NucBox EVO X3 Specifications
| Specification | Details |
|---|---|
| Processor | AMD Ryzen AI Max+ 395 |
| CPU Architecture | AMD Zen 5 |
| CPU Cores | 16 Cores / 32 Threads |
| Maximum CPU Speed | Up to 5.1GHz |
| L2 Cache | 16MB |
| L3 Cache | 64MB |
| GPU | AMD Radeon 8060S |
| GPU Architecture | RDNA 3.5 |
| GPU Compute Units | 40 CUs |
| GPU Frequency | Up to 2900MHz |
| NPU | AMD XDNA 2 |
| NPU Performance | Up to 50 TOPS |
| Total AI Performance | Up to 126 TOPS |
| Memory | 128GB Onboard LPDDR5X |
| Memory Speed | Up to 8000MT/s |
| Maximum VRAM | Up to 96GB |
| Storage | 4TB M.2 2280 PCIe 4.0 ×4 NVMe SSD |
| SSD Slots | Dual M.2 2280 PCIe 4.0 ×4 |
| Maximum Storage Expansion | Up to 16TB |
| eGPU Expansion | OCuLink PCIe Gen 4 ×4 |
| Wireless | Wi-Fi 7 |
| Bluetooth | Bluetooth 5.4 |
| LAN | 1 × 2.5G RJ45 |
| Display Output | 1 × HDMI 2.1, 1 × USB4 Type-C |
| Front USB | 1 × USB-A 3.2 Gen 1, 1 × USB-A 2.0 |
| Rear USB | 1 × USB-A 3.2 Gen 2, 1 × USB4 Type-C |
| Audio | 1 × 3.5mm Audio Combo Jack |
| HDMI | HDMI 2.1, up to 8K@60Hz |
| Operating System | Windows 11 Pro |
| Cooling | Triple Heat Pipes, Triple Cooling Fans |
| Power Supply | DC IN 19.5V / 11.8A |
| Warranty | 1 Year |
Who Is the GMKtec NucBox EVO X3 For?
The GMKtec NucBox EVO X3 is designed for users who need significantly more performance than a typical compact office mini PC.
It can be suitable for:
- AI and local AI workloads
- PC gaming
- Content creators
- Video editors
- Software developers
- Professional users
- Heavy multitasking
- 3D and GPU-accelerated applications
- Users requiring large memory capacity
- Users who want a compact high-performance workstation
- Users who may want future eGPU expansion
Pros and Cons
Pros
- AMD Ryzen AI Max+ 395 with 16 cores and 32 threads
- Zen 5 architecture
- Radeon 8060S RDNA 3.5 integrated graphics
- 40 GPU Compute Units
- Up to 126 TOPS total AI performance
- 128GB LPDDR5X 8000MT/s memory
- Up to 96GB maximum VRAM
- 4TB PCIe 4.0 NVMe SSD
- Dual M.2 PCIe 4.0 ×4 slots
- Up to 16TB storage expansion
- OCuLink PCIe Gen 4 ×4 eGPU support
- Wi-Fi 7 and 2.5G LAN
- HDMI 2.1 and USB4 video output
- Windows 11 Pro
- Triple heat pipes and triple cooling fans
Cons
- High-end specifications come at a premium price
- RAM is onboard rather than a traditional user-upgradable DIMM configuration
- External GPU requires a compatible eGPU setup
Frequently Asked Questions
What processor does the GMKtec NucBox EVO X3 use?
The GMKtec NucBox EVO X3 uses the AMD Ryzen AI Max+ 395 processor with 16 cores and 32 threads, based on AMD Zen 5 architecture.
How much RAM does the EVO-X3 have?
The system configuration provided includes 128GB of onboard LPDDR5X memory running at up to 8000MT/s.
What GPU does the GMKtec EVO-X3 use?
It uses the integrated AMD Radeon 8060S GPU, based on RDNA 3.5 architecture and featuring 40 Compute Units.
How much storage does it have?
The supplied configuration includes a 4TB PCIe 4.0 ×4 NVMe SSD. The system has dual M.2 slots and supports storage expansion up to 16TB.
Does the EVO-X3 support an external GPU?
Yes. It features an OCuLink PCIe Gen 4 ×4 port for connecting a compatible external GPU.
Does the GMKtec EVO-X3 support 8K displays?
Yes. Its HDMI 2.1 output is specified to support up to 8K at 60Hz.
What operating system does it use?
The GMKtec NucBox EVO X3 comes with Windows 11 Pro.
Why Choose the GMKtec NucBox EVO X3?
The GMKtec NucBox EVO X3 combines high-end AMD processing, powerful integrated graphics, substantial memory, fast PCIe 4.0 storage, and advanced connectivity in a compact mini PC.
Its Ryzen AI Max+ 395 processor, Radeon 8060S graphics, 128GB LPDDR5X memory, 4TB SSD, Wi-Fi 7, USB4, HDMI 2.1, and OCuLink expansion make it a versatile option for users working with demanding applications, AI workloads, gaming, content creation, and professional computing.
GMKtec NucBox EVO X3 Price in Nepal
The GMKtec NucBox EVO X3 AMD Ryzen AI Max+ 395 AI Mini PC is priced at NPR 8,39,999 in Nepal.
You can purchase the GMKtec NucBox EVO X3 from Rapido Tech Nepal, with delivery available across Nepal, including Kathmandu, Lalitpur, Bhaktapur, Pokhara, Chitwan, Biratnagar, Birgunj, and other locations.
The system comes with a 1-year warranty.
